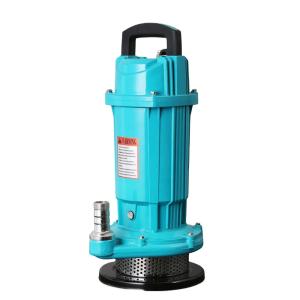

25mm garden submersible water pump For farm irrigation 220V 50Hz

  • 1
  • 2
  • 3

Brand Name : MC

Model Number : QDX

Certification : CCC ISO

Place of Origin : CHINA

MOQ : 10

Price : $38- $78/pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 Piece/Pieces per Month

Delivery Time : 10 work days

Packaging Details : 100% original package

Type : submersible pump

Maximum Head : 17m32m25m

Maximum Flow Rate : 1.5m3/h

Pressure : 220V/50Hz, High Pressure

Outlet Size : 25cm-76cm

Application : Irrigation and Agriculture, water

Size : 25mm

Product name : submersible water pumps

Contact Now

china best brands watering garden submersible diving water pumps used farm irrigation

Application

For water supply from wells or reservoirs.
For domestic use ,for civil and industrial applications.
For garden use and irrigation.
Working Conditions
Max.medium temperature:+40º C
Max.ambient temperature:+40º C
Max.working pressure: 5bar
Medium free from granules or anything that may damage the pump.
Power voltage: single-phase AC 220V,
Frequency: 50Hz
60Hz and three phases AC 380V, frequency 50Hz. 10 percent more or less voltage fluctuation from the rated value is allowed.
Key parts and materials
Pump body: Cast Aluminum or Cast Iron
Mechanical Seal: Ceramic-Graphite, Silicon
Stator sheet:DR510 or 470
Motor bracket: Cast Aluminum or Cast iron
Carbide-Carbide Alloy
Motor Shaft: CS45# or SS
Impeller: Cast Aluminum
Model
Q.rat (m3/h)
H.rat(m)
Power (Kw/Hp)
Speed
(r/min)
Voltage (V/Hz)
Current (A)
Size
(mm)
Head range
(m)
QDX1.5-12-0.25
1.5
12
0.25
2860
220/50
2.1
25
6-12
QDX1.5-17-0.37
1.5
17
0.37
2860
220/50
2.87
25
8-17
QDX1.5-25-0.55
1.5
25
0.55
2860
220/50
4.07
25
15-25
QDX3-18-0.55
3
18
0.55
2860
220/50
4.07
32
9-18
QDX10-12-0.55
10
12
0.55
2860
220/50
4.07
.38
4-12
QDX15-7-0.55
15
7
0.55
2860
220/50
4.07
51
0-7
QDX1.5-32-0.75
1.5
32
0.75
2860
220/50
5.24
25
20-32
QDX3-24-0.75
3
24
0.75
2860
220/50
5.24
32
15-24
QDX8-18-0.75
8
18
0.75
2860
220/50
5.24
38
10-18
QDX10-16-0.75
10
16
0.75
2860
220/50
5.24
51
8-16
QDX15-10-0.75
15
10
0.75
2860
220/50
5.24
64
2-10
QDX30-6-0.75
30
6
0.75
2860
220/50
5.24
76
0-6
QDX3-35-1.1
3
35
1.1
2860
220/50
6.2
25
25-35
QX3-35-1.1
3
35
1.1
2860
380/50
2.77
25
25-35
QDX6-26-1.1
6
26
1.1
2860
220/50
6.2
38
16-26
QX6-26-1.1
6
26
1.1
2860
380/50
2.77
38
16-26
QDX10-20-1.1
10
20
1.1
2860
220/50
6.2
51
10-20
QX10-20-1.1
10
20
1.1
2860
380/50
2.77
51
10-20
QDX15-15-1.1
15
15
1.1
2860
220/50
6.2
64
7-15
QX15-15-1.1
15
15
1.1
2860
380/50
2.77
64
7-15
QDX30-9-1.1
30
9
1.1
2860
220/50
6.2
76
2-9
QX30-9-1.1
30
9
1.1
2860
380/50
2.77
76
2-9
QDX3-38-1.5
3
38
1.5
2860
220/50
9.44
25
25-38
QX3-38-1.5
3
38
1.5
2860
380/50
3.58
25
25-38
QDX10-25-1.5
10
25
1.5
2860
220/50
9.44
51
20-25
